Cable support trough with fastening rail

6006890Cable support trough for single routing , 44x200x113 , KTW 100 FT6006901Cable support trough single , 140x200x123 , KTW 100 1 FT6006902Cable support trough double , 200x200x123 , KTW 100 2 FT6006903Cable support trough triple , 300x200x123 , KTW 100 3 FT6006904Cable support trough 4-way , 400x200x123 , KTW 100 4 FT6006905Cable support trough 5-way , 500x200x123 , KTW 100 5 FT6006906Cable support trough 6-way , 600x200x123 , KTW 100 6 FT6006907Cable support trough 7-way , 700x200x123 , KTW 100 7 FT6006908Cable support trough 8-way , 800x200x123 , KTW 100 8 FT6006909Cable support trough 9-way , 900x200x123 , KTW 100 9 FT6006910Cable support trough 10-way , 1000x200x123 , KTW 100 10 FT

Product details

Product description
Product name

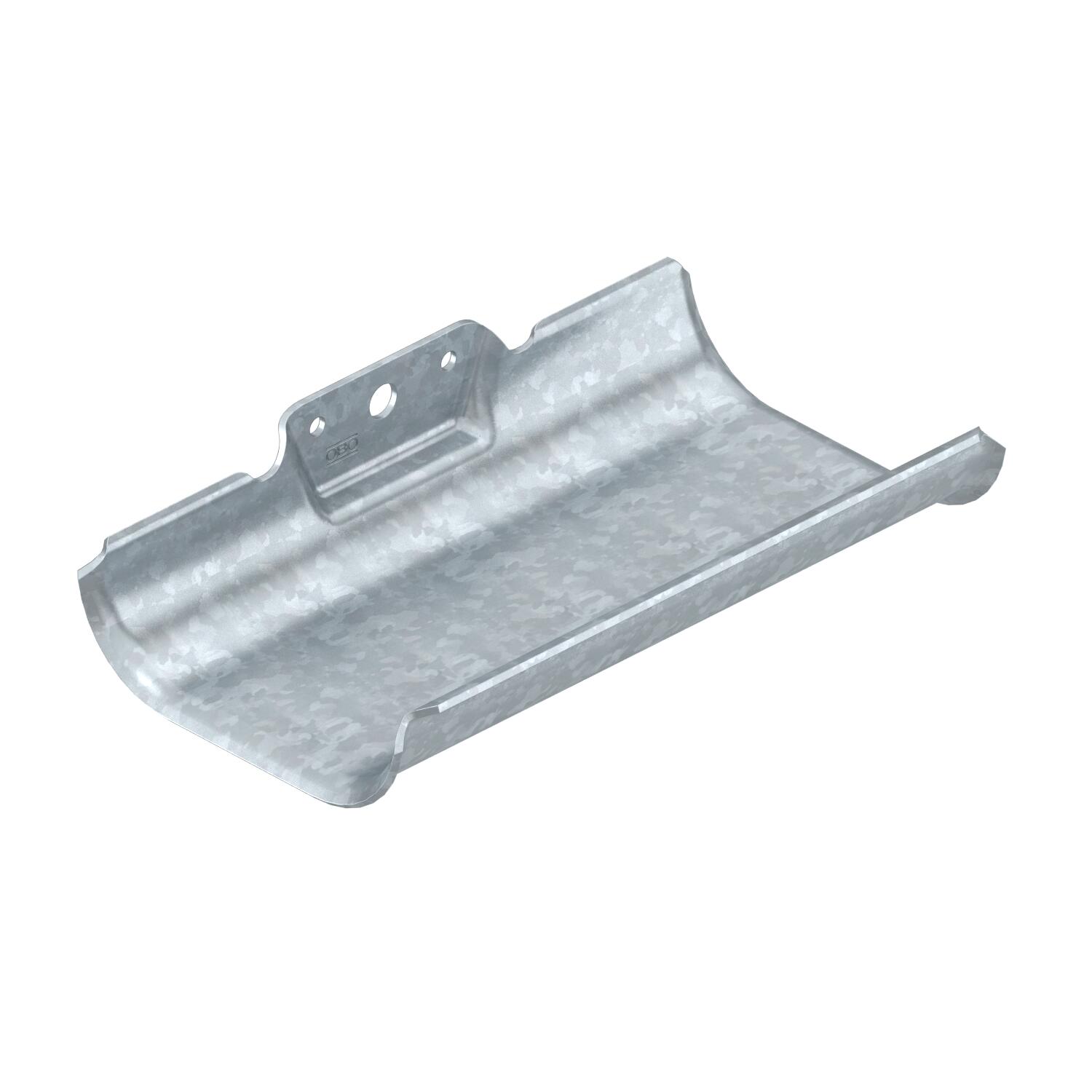

Cable support trough for single routing , 44x200x113 , KTW 100 FT
GTIN
4012196440948
Item description, complete
Cable support brackets for quick and easy routing of cables in areas where common cable support systems cannot be installed due to lack of space. The cable support brackets possess a large load-bearing surface as well as rounded outer edges to protect the cables.
Manufacturer
OBO Bettermann
Type
KTW 100 FT
Technical data
Colour
zink>zinc
Material
Steel Hot-dip galvanised
Plate thickness (mm)
2
Width (mm)
113
Dimension
44x200x113
Weight
0,48
Height (mm)
44
Length (mm)
198
Classifications
ETIM group
EG000004
ETIM class
EC003510
Other data
Tender text
Cable support trough KTW 100 FT Make: OBO BETTERMANN Type: KTW 100 FT Item no.: 6006890 Unit: Piece
